DFI CMS330-Q470E/H420E

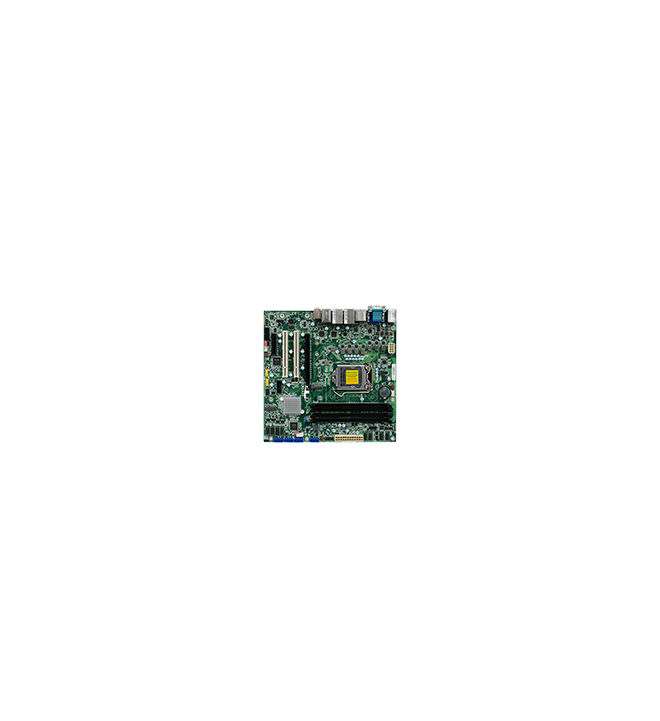

CMS330-Q470E / CMS330-H420E – Industrial microATX Motherboards with 10th Gen Intel® Core™ Processors

The CMS330-Q470E and CMS330-H420E from DFI are high-performance microATX industrial motherboards designed for industrial automation, embedded computing, digital signage, AI applications, and industrial control systems. The platforms support 10th Gen Intel® Core™ processors with the LGA1200 socket and are powered by the Intel® Q470E or Intel® H420E chipset. CPUs with up to 125W TDP are supported for demanding industrial workloads.

Depending on the model, the boards support up to 128 GB DDR4 UDIMM memory and provide triple display support through VGA, DisplayPort++, and HDMI with resolutions up to 4K. This makes the systems ideal for industrial visualization, control rooms, HMI systems, and multi-display applications.

For expansion, the platforms offer 1 PCIe x16 Gen3 slot, 1 PCIe x4 Gen3 slot, 2 PCI slots, M.2 M-Key, as well as M.2 E-Key support on the Q470E version and 4 SATA 3.0 ports. The boards also feature extensive connectivity including 2 Gigabit LAN ports, up to 10 COM ports, USB 3.2 Gen2/Gen1, USB 2.0, and 16-bit Digital-I/O.

The Q470E version additionally supports enterprise features such as Intel® iAMT 12.0, RAID 0/1/5/10, and long-term availability with up to 15 years CPU lifecycle support based on the Intel IoT roadmap.
